Troubleshooting System and Instance Status Checks Failed

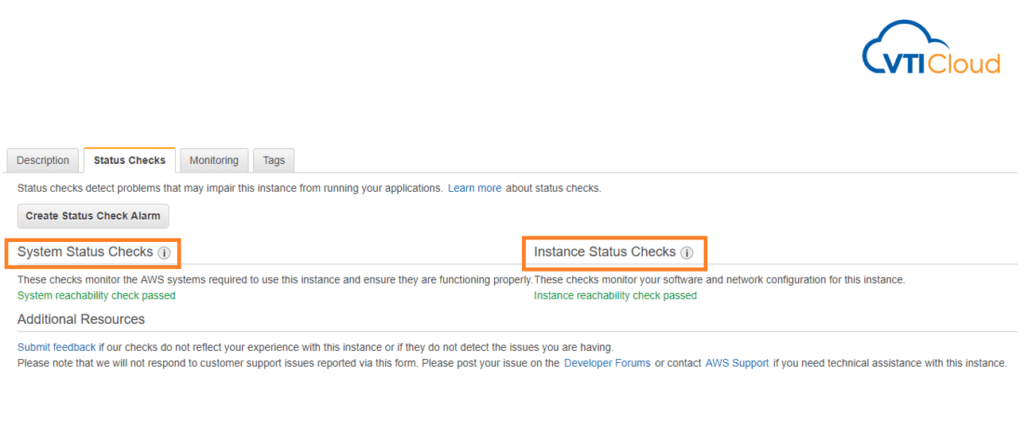

ec2 system status and instance status

Inside Amazon EC2, there are two types of status check: System Status Checks and Instance Status Checks.

Errors in these will indicate different issues, and you should recover from them differently.

This topic discusses the System and Instance Status Checks and how to recover from these checks.



System Status Checks Failed

System Status Checks Failed

The System Status Checks monitor all the AWS systems that your instances run on. So this includes all of the back-end, networking, power, hypervisor, and everything else that you as a customer don’t have access to in the Shared responsibility model.

So some of the reasons that you might see a failure in the System Status Checks are:

  • Loss of network connectivity

  • Loss of system power

  • Software issues on physical host

  • Hardware issues on the physical host that impact network reachability

If there’s a failure because of a loss of network connectivity, or power, there’s really nothing we can do about it because AWS will have to correct that themselves.

However, we can resolve failures in a couple of ways:

  • For EBS-Backed instances, we can stop and start instance to obtain new hardware

  • For instance store-backed instances, we have to terminate and replace the instance to place on new hardware. Remember, we can’t stop instance store volumes so that data will be lost unless you’ve previously backed it up.



Instance Status Checks Failed

Instance Status Checks Failed

For Instance Status Checks, these are the things that we do have control over. It’ll monitor the networking software configuration on an instance, you have to intervene yourself to fix any issues.

And some of the reasons for failures might be:

  • Failed system status checks

  • Incorrect networking or startup configuration

  • Exhausted memory

  • Corrupted file system

  • Incompatible kernel

To resolve any of these issues, you will have to make instance configuration changes or potentially reboot the instance.



EC2 Instance Status Checks on AWS CLI

We can also perform the same status checks from the AWS command line interface (CLI).

Here we can invoke:

aws ec2 describe-instance-status

This will give us a list of all of our EC2 instances within the region including the InstanceId, the InstanceState and the InstanceStatus. If any of the status checks fail, you might see a status such as impaired.

EC2 Status Checks

You can also check a particular EC2 instance by adding the InstanceId to the previous command:

aws ec2 describe-instance-status –instance-ids i-0a841fba0a4225f5f

EC2 Status Checks

Or apply a filter to these values by the following command:

aws ec2 describe-instance-status –filters Name=instance-status.status,Values=ok

EC2 Status Checks

aws ec2 describe-instance-status –filters Name=instance-status.status,Values=impaired

EC2 Status Checks

Basically, that’s all you need to know about EC2 Status Checks, just keep in mind that System Status Checks are within AWS control and Instance Status Checks are within your control, and your responsibility to correct.

Reference

Amazon EC2 – Status checks for your instances
